Moto Iron Brake Caliper Kit For Moto Iron Springer Front Ends

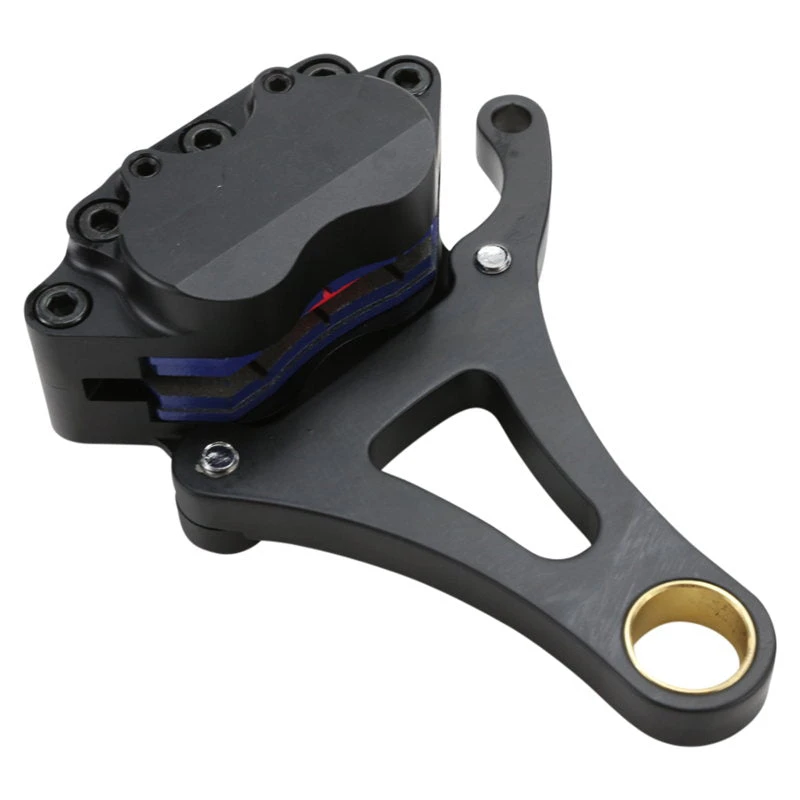

Moto Iron Left Side Springer Brake Caliper Kit For Springer Front Ends

Looking to put a brake on your springer build? These kits are the solution.

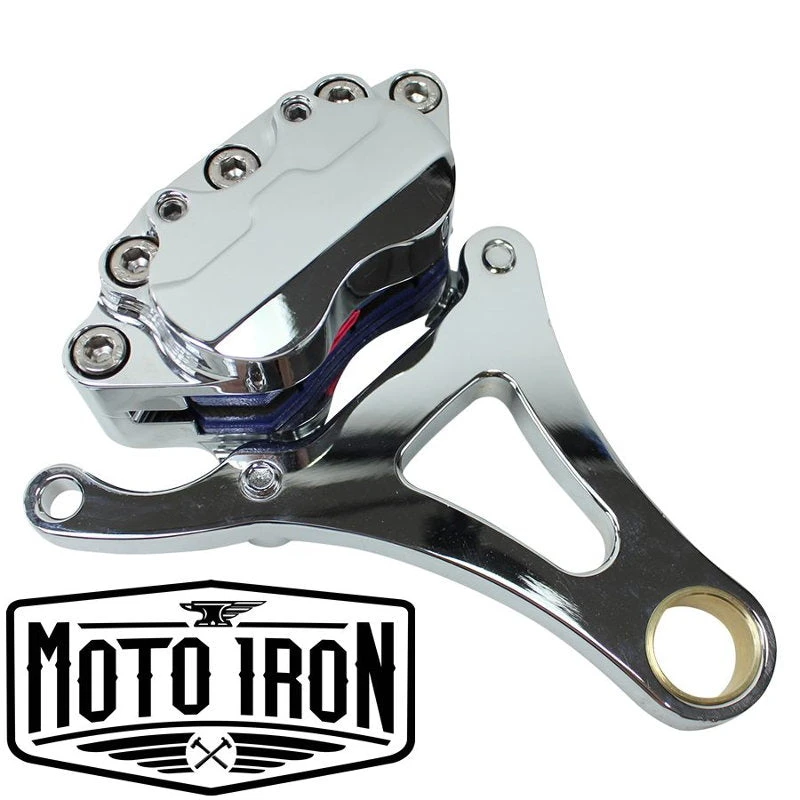

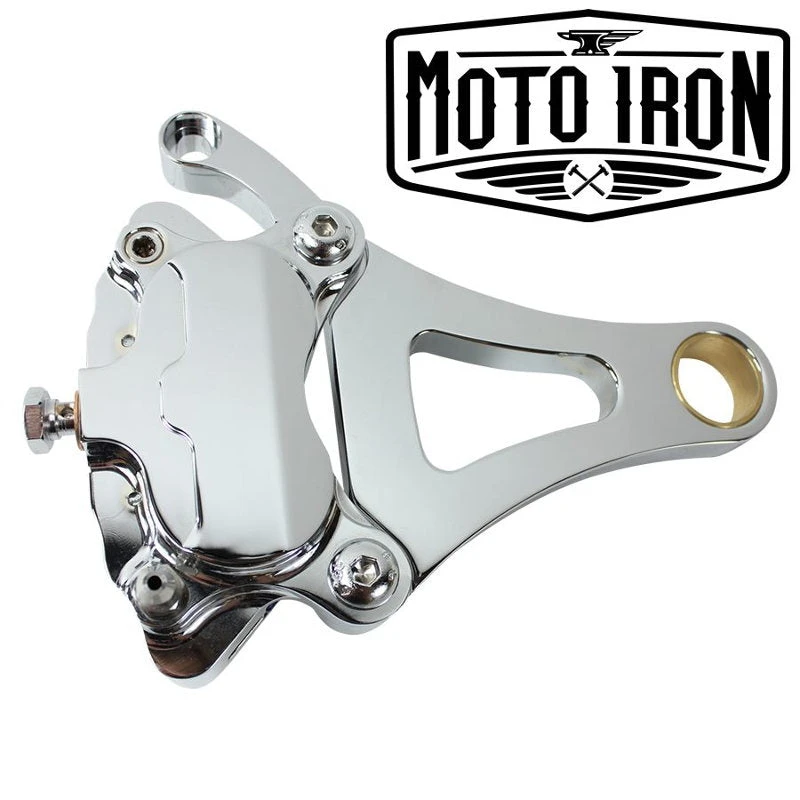

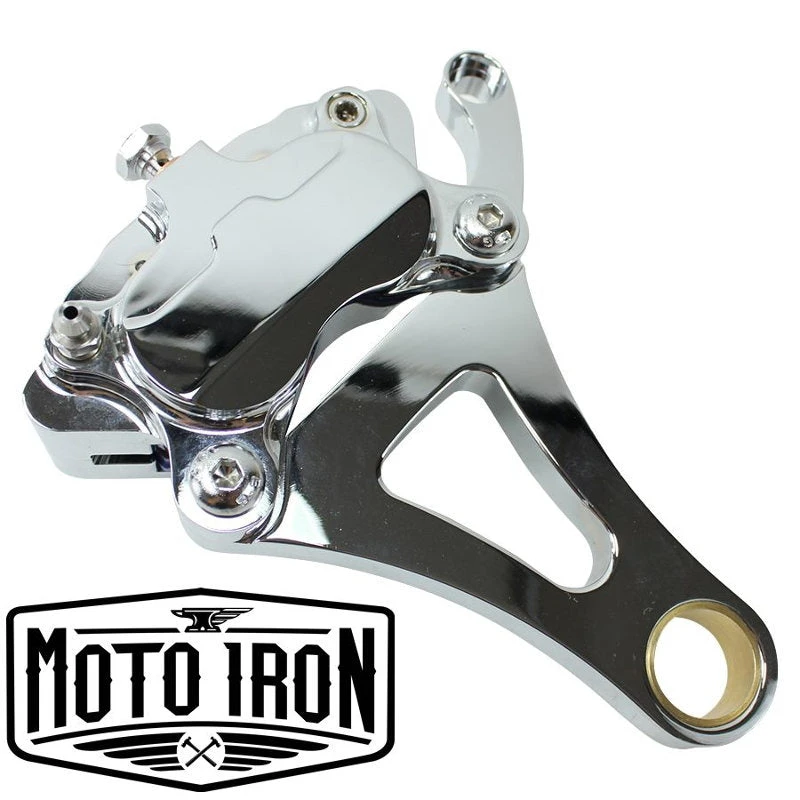

• High-performance 4-piston caliper
• Mounting position is seated on the bike
• For wheels using a 3/4″ axle (not included) and Harley-Davidson-pattern 11.5″ rotor (not included)
• Stainless steel pistons for corrosion resistance

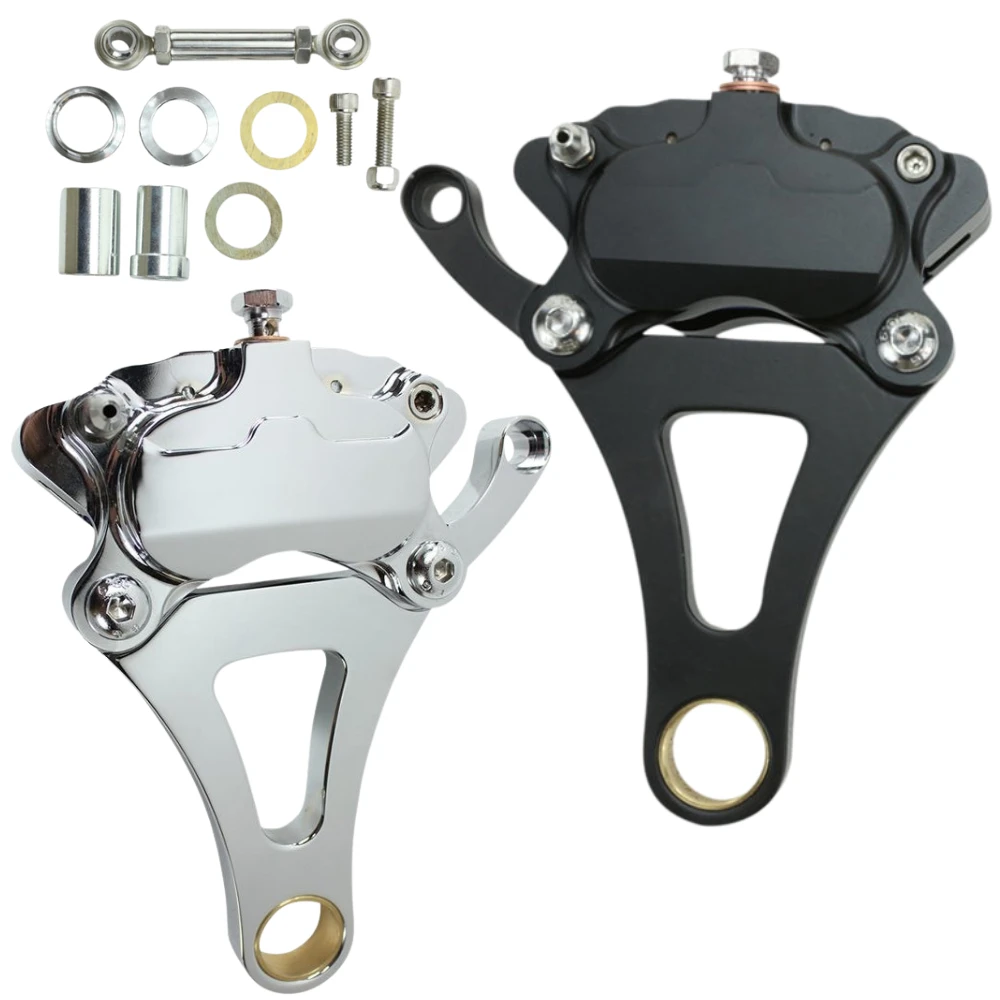

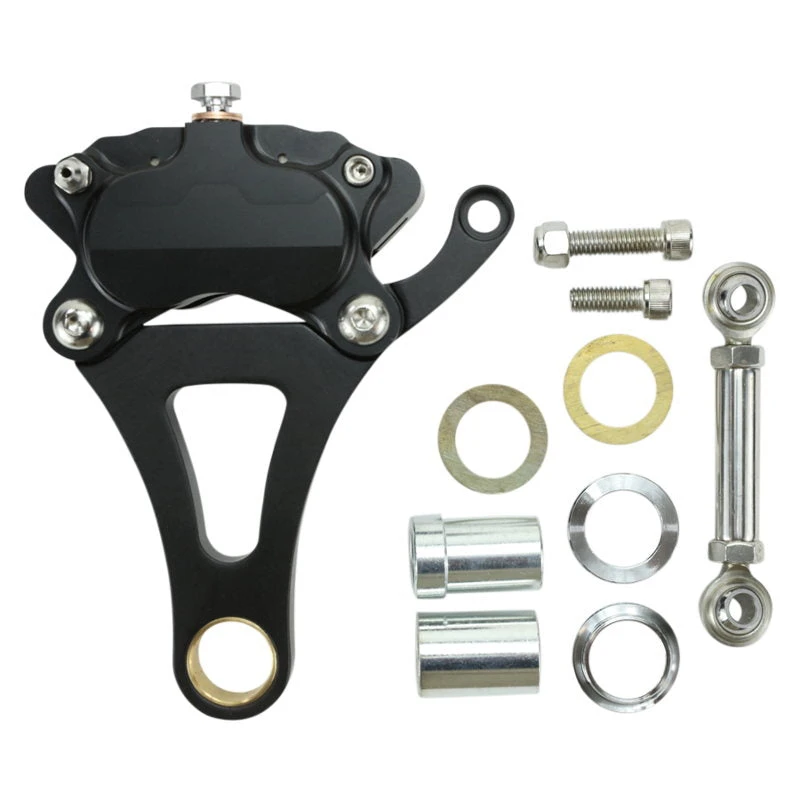

• Attractive chrome or black finishes to match or contrast your front end
• Brake pads are included
• Maintenance parts available
  • Replacement brake pads P/N 116-0057
  • Replacement seal kit P/N 116-0054
• Uses DOT 5 brake fluid (not included)

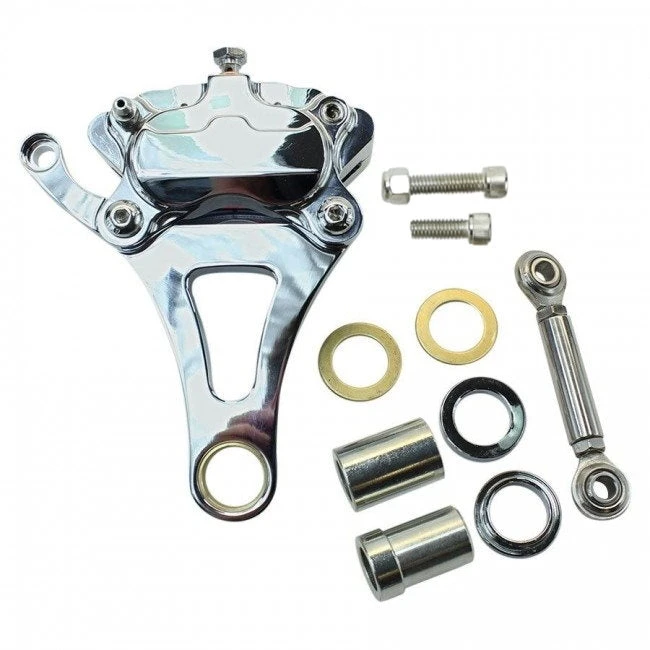

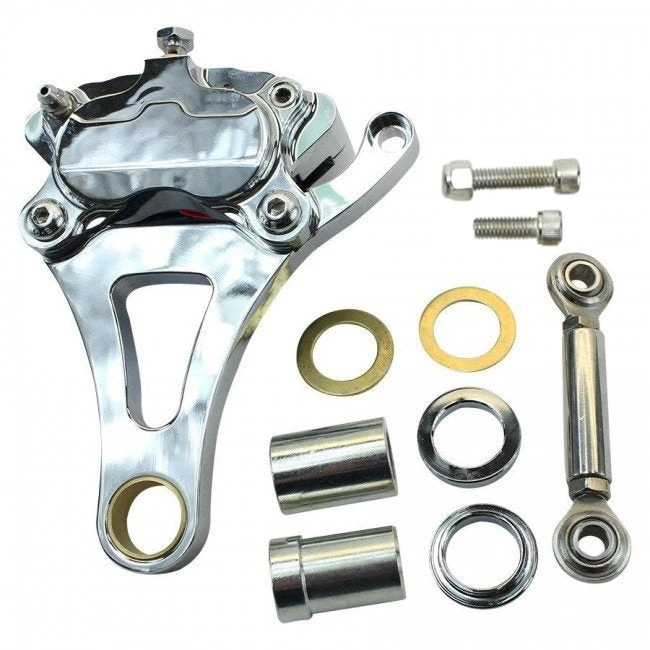

• 3/8″-24 banjo bolt and copper washers included

Made to complement Moto Iron brand front ends, these are the calipers we recommend for springers conversion projects because we know they offer builders a simple, easy bolt-in solution. They will also fit front ends made by DNA, Hardbody (Mid-USA), Ultima, Biker’s Choice, and Paughco (possibly with modification).

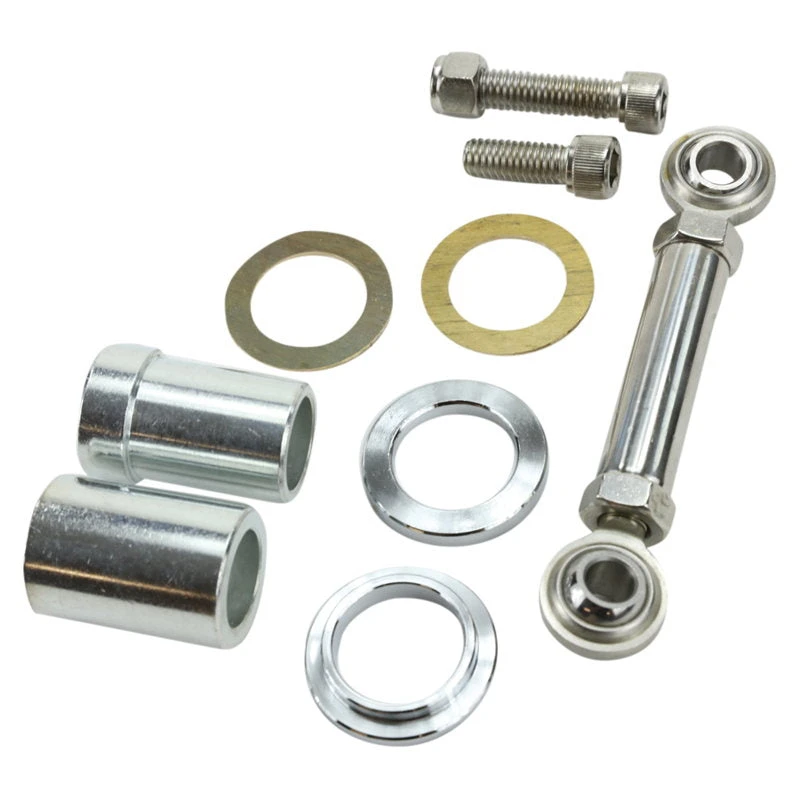

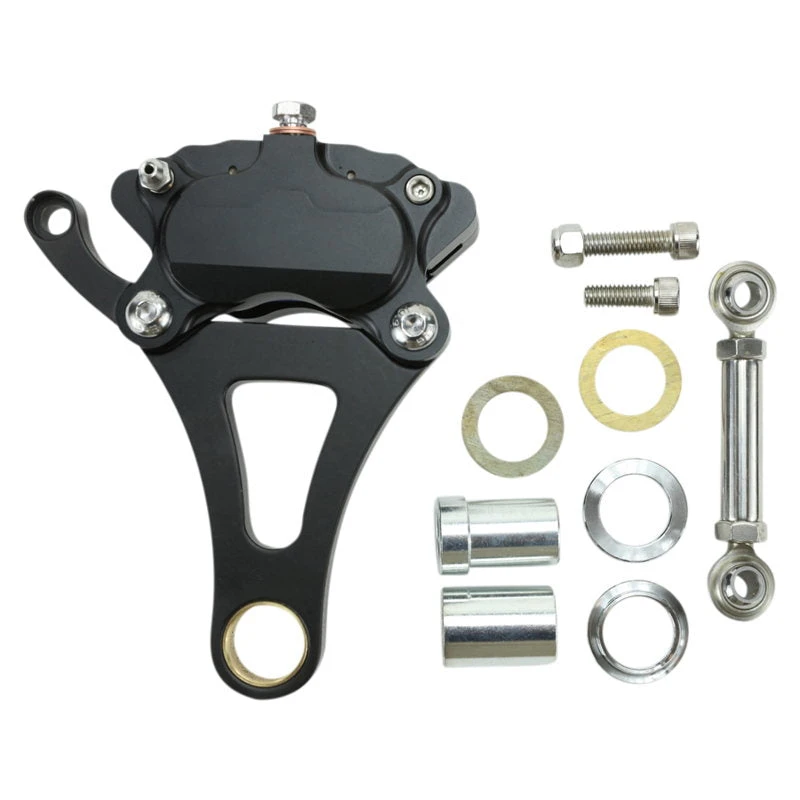

These springer kits are perfect for springers that feature a caliper stay mounting boss on the rear leg. Included wheel spacers are cut to accept 1984-1999 Harley-Davidson Softail-style wheels (6 1/2″ width). This kit can be used with wheels from other models if the appropriate spacers are fabricated.

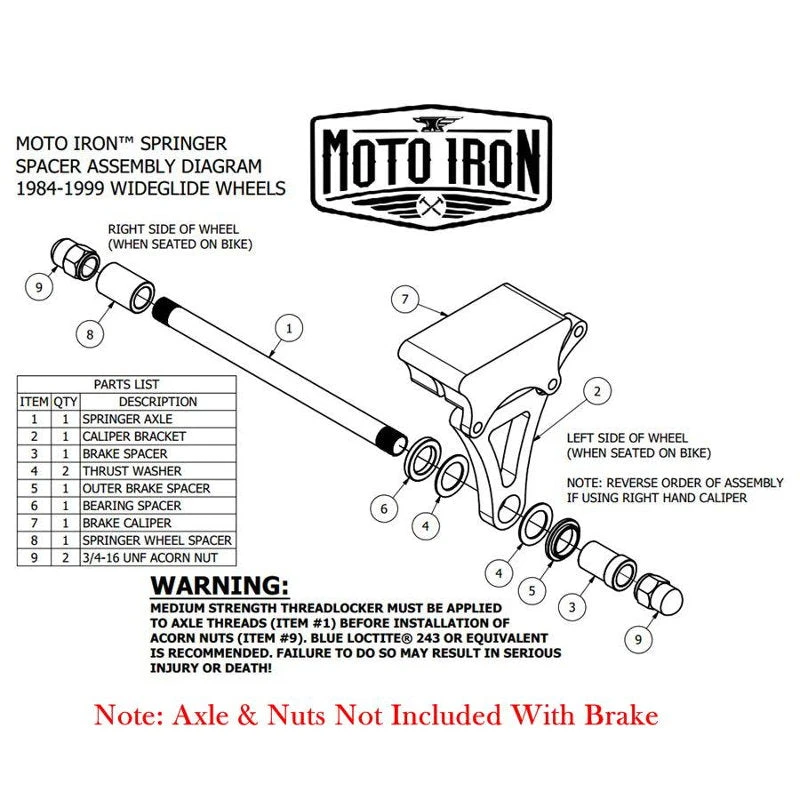

We recommend the use of a 9/16″ master cylinder with this caliper kit. P/N 101-0194  and 101-0195, our compatible hand control kits, have master cylinders with the correct bore size and are available separately. DOT 5 brake fluid (not included) is recommended for use with this caliper. Brake lines are also available. This kit is not compatible with OEM Harley-Davidson springer front ends. Please reference assembly diagram for proper component installation.
